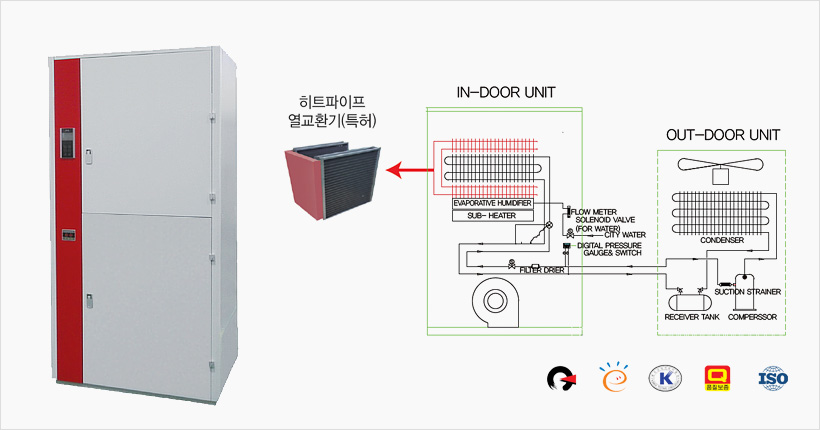

항온항습기

공냉식, 하향식
표준사양
MODEL KC50
030
KC50
050
KC50
060
KC50
075
KC50
100
KC50
150
KC50
200
KC50
300
전 원 (Power Supply) 220 / 380V~440V / 3Ph / 60Hz
사용냉매 (Refrigerant) R-22 / R-410A / R-134a
냉방능력
(cooling cap)
kcal/hr 8,729 14,491 17,458 19,952 28,982 39,904 62,780 93,224
kw 10.15 16.85 20.30 23.20 33.70 46.40 73.00 108.40
난방능력
(heating cap)
kcal/hr 2,580 2,580 5,160 5,160 8,600 8,600 10,320 10,320
kw 3.00 3.00 6.00 6.00 10.00 10.00 12.00 12.00
압축기
(Comp.)
Type Hermetic - Scroll Type
Out put (kw) 2.2 3.75 2.2 x 2 5.5 3.75 x 2 5.5 x 2 7.5 x 2 11.25 x 2
송풍기
(Blower)
Type Sirocco Fan / Direct - Drive
Motor
(kw x p x ea)
0.4 x 8 x 1 0.5 x 8 x 1 0.6 x 8 x 1 0.8 x 8 x 1 0.8 x 8 x 2 0.8 x 8 x 2 1.1 x 8 x 2 1.3 x 8 x 2
S.P (mmAq) 17~22 17∼22 17∼22 17∼22 17∼22 17∼22 17∼22 17∼22
Air Volume (CMM) 38 45 60 85 92 150 185 215
응축기
(Condenser)
Fan (ø x B x ea) 350x4x2 400x4x2 (350x4x2)x2 500x4x2 (400x4x2)x2 (500x4x2)x2 (550x4x2)x2 (600x4x2)x2
Motor(w x p x ea) 100x6x2 160x6x2 (100x6x2)x2 280x6x2 (160x6x2)x2 (280x6x2)x2 (280x6x2)x2 (400x6x2)x2
Air Volume (CMM) 80 100 80x2 190 100x2 190x2 210x2 300x2
Size (W x D x H) 965x574
x1,037
1,186x574
x1,183
965x574
x1,037-2
192x744
x1,451
1,186x574
x1,183-2
1,392x744
x1,451-2
1,738x849
x1,452-2
1,650x900
x1,950-2
보조히터
(Heater)
Type STS-Aero Finned Tube Type
Out put (kw) 3.00 3.00 6.00 6.00 10.00 10.00 12.00 12.00
가습기
(Humidifier)
Type 기화식(Evaporative Type)
Capacity (L/hr) 4.00 5.00 8.00 8.00 10.00 15.00 20.00 25.00
배 관
(Pipe Conn.)
Suction (inch) 5/8" 3/4" 5/8"x2 7/8" 3/4"x2 7/8"x2 1-1/8"x2 1-3/8"x2
Discharge (inch) 3/8" 1/2" 3/8"x2 1/2" 1/2"x2 1/2"x2 5/8"x2 7/8"x2
Make-Up(inch) 1/4"
Drain (A) 20 25
외형치수
(Out-Dimension)
W 1,100 1,100 1,300 1,300 1,510 1,850 2,000 2,500
D 1,100 1,100 1,150 1,150 1,150 1,150 1,250 1,300
H 1,850 1,850 1,850 1,850 1,850 1,900 1,900 2,150
Power Consupumption (kw) 5.80 7.57 11.20 12.86 19.14 23.72 29.76 37.90
전선용량
(Cable Size)
220V / wire (㎟) 6.0 10.0 16.0 25.0 35.0 35.0 50.0 70.0
380V / wire (㎟) 4.0 4.0 6.0 16.0 16.0 25.0 25.0 35.0
